Driver Seat Module (DSM): Notes

SPECIAL TOOLS

G06600745
Heavy-Duty Riveter
501-D011 (D80L-23200-A)
G07482720
Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

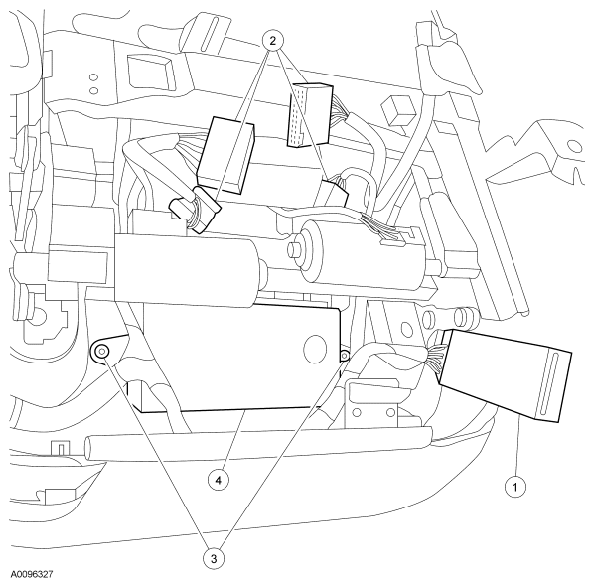

Fig 1: Identifying Driver Seat Module (DSM) Components
G06254609Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14C724 Heated seat module (if equipped)
2 - Driver Seat Module (DSM) electrical connectors (part of 14A699)
3 - DSM rivets (2 required)
4 14C708 DSM
