EGR Monitor

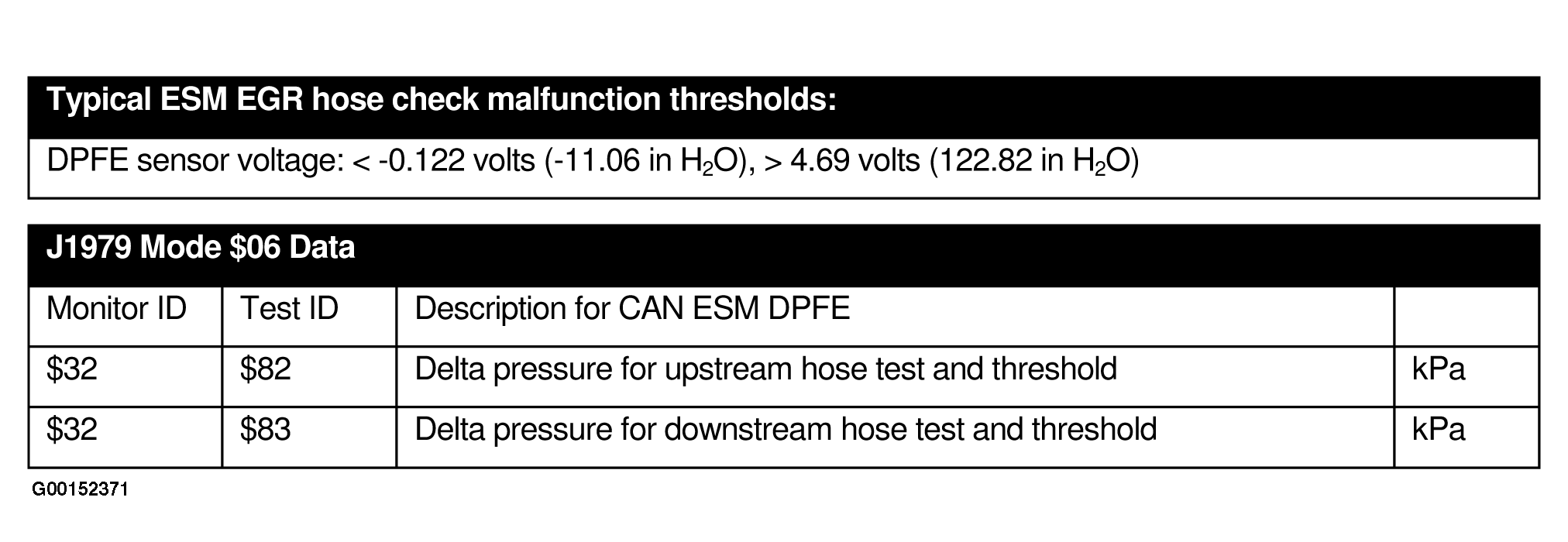

Fig 1: Mode $06 Data For EGR Hose Check Monitor (ESM DPFE)

Courtesy of FORD MOTOR CO.

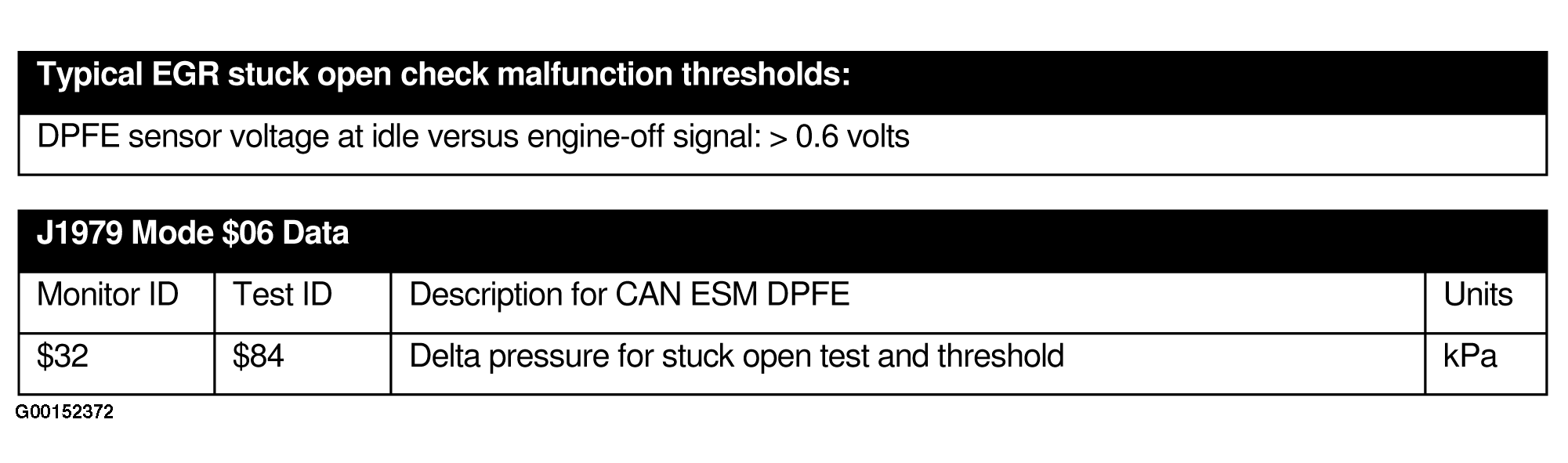

Fig 2: Mode $06 Data For EGR Stuck Open Monitor (ESM DPFE)

Courtesy of FORD MOTOR CO.

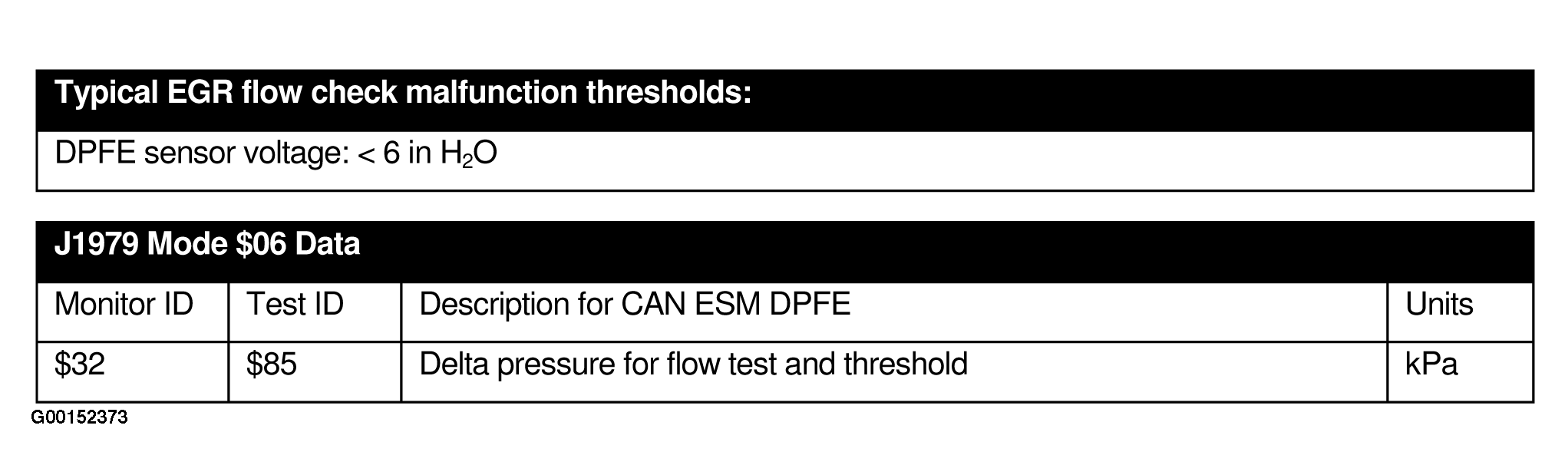

Fig 3: Mode $06 Data For EGR Flow Check Monitor (ESM DPFE)

Courtesy of FORD MOTOR CO.

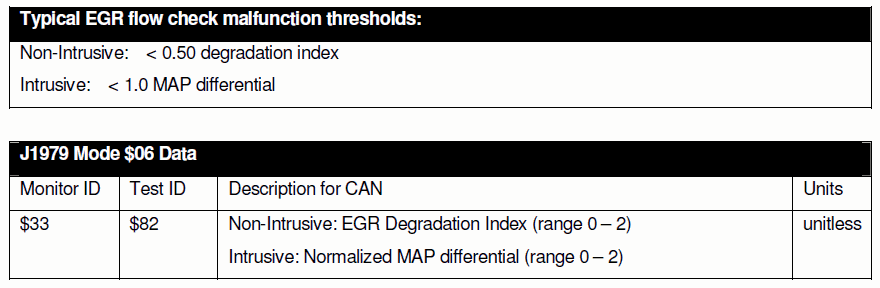

Fig 4: Mode $06 Data For EGR Flow Check Monitor (Stepper Motor)

Courtesy of FORD MOTOR CO.
