Front Brake Caliper: Notes

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Material

Item Specification
High Performance DOT 3 Motor Vehicle Brake Fluid
PM-1-C (US); CPM-1-C (Canada)
WSS-M6C62-A

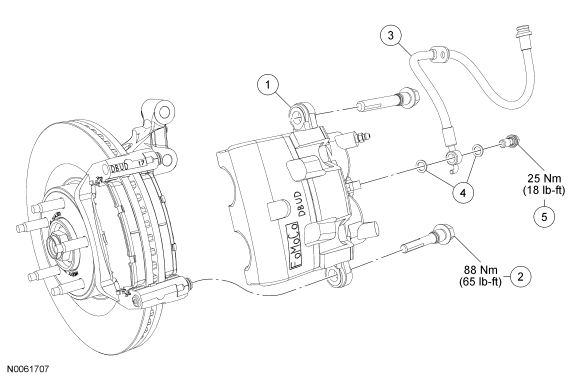

Fig 1: Exploded View Of Brake Caliper With Torque Specifications
GF0031530Courtesy of FORD MOTOR CO.
Item Part Number Description
1 2B120 RH/ 2B121 LH Brake caliper
2 2C150 Brake caliper guide bolt (2 required)
3 2078 RH/ 2B557 LH Front brake hose
4 W711784 Copper washers (2 required)
5 2M085 Brake caliper flow bolt
