Front Brake Pads: Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A |

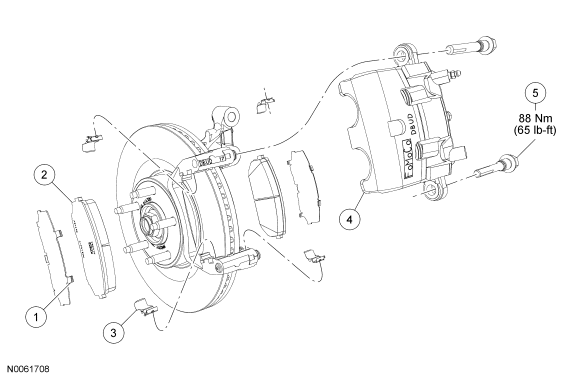

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Stainless steel shim (2 required) (part of 2001) |
| 2 | 2001 | Brake pad (2 required) |
| 3 | - | Brake pad slide (4 required) (part of 2001) |
| 4 | 2B120 RH/ 2B121 LH | Brake caliper |
| 5 | 2C150 | Brake caliper guide pin bolt (2 required) |
