Rear Disc Brake: Notes

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Material

Item	Specification
High Temperature Nickel Anti-Seize Lubricant XL-2 (US); CXG-2-B (Canada)	ESE-M12A4-A
Metal Brake Parts Cleaner PM-4-A or PM-4-B (US); CPM-4 (Canada)	-

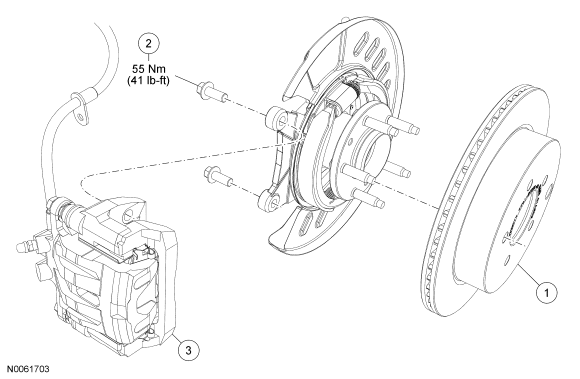

Fig 1: Exploded View Of Brake Disc With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	2C026	Brake disc
2	W711240	Brake caliper anchor plate bolt (2 required)
3	-	Brake caliper and anchor plate assembly
