Lower Arm: Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

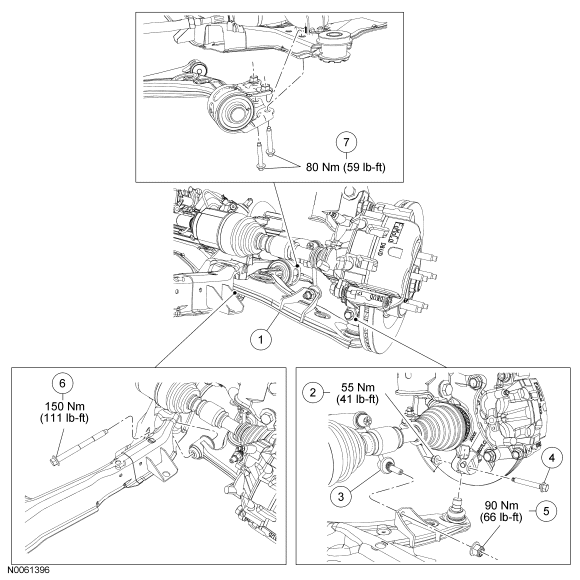

| Item |
Part Number |
Description |
| 1 |
3A423 RH/ 3A424 LH |
Lower arm |
| 2 |
W520213 |
Lower ball joint nut |
| 3 |
3B438 |
Stabilizer bar link |
| 4 |
W712481 |
Lower ball joint bolt |
| 5 |
W520214 |
Stabilizer bar link nut |
| 6 |
W712734 |
Lower arm-to-frame forward bolt |
| 7 |
W712850 |
Lower arm-to-frame rearward bolts (2 required) |
