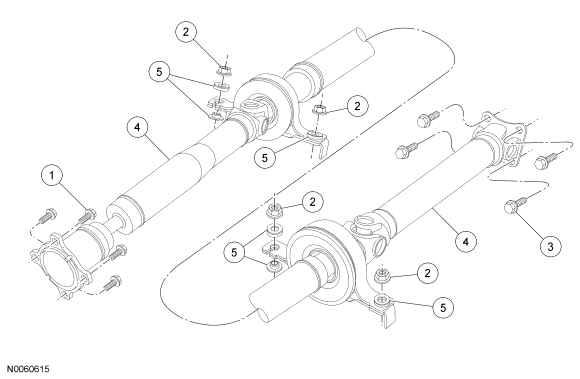

Removal And Installation: Driveshaft: Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W711918 |
Front driveshaft-to-transfer case bolt (4 required) |
| 2 |
W520113 |
Center bearing support nuts (4 required) |
| 3 |
W711918 |
Universal flange-to-pinion flange bolt (4 required) |
| 4 |
4K357 |
Driveshaft |
| 5 |
4A169 |
Isolators (8 required) |
