Removal And Installation: Radiator: Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
8B274 |
Upper radiator hose |
| 2 |
8C633 |
Lower degas bottle hose |
| 3 |
8B273 |
Lower radiator hose |
| 4 |
8A194 |
Upper radiator support bracket (2 required) |

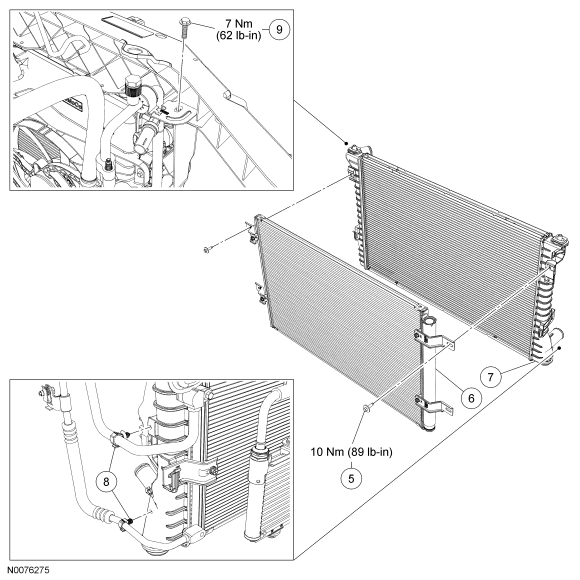

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 5 |
- |
A/C condenser bolt (2 required) |
| 6 |
19710 |
A/C condenser |
| 7 |
8005 |
Radiator |
| 8 |
19D738 |
Pin-type retainer (2 required) |
| 9 |
W707400 |
Compressor-to-condenser discharge line bracket bolt |
