Driver Seat Module (DSM): Notes

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
	Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

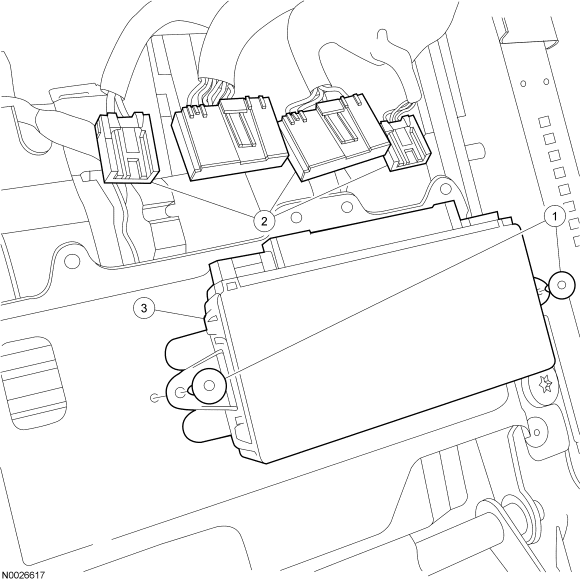

Fig 1: Identifying Driver Seat Module (DSM)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Driver seat module (DSM) screws (2 required)
2	-	DSM electrical connectors (part of 14A699)
3	13C789	DSM
