Seat - Exploded View, Front
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Driver backrest shown, passenger backrest similar.
NOTE:
Manual recliners without fold flat backrest are serviced with the backrest frame. Power recliners without fold flat backrest are serviced separately.
NOTE:
A new heater mat will come assembled on a new foam pad.

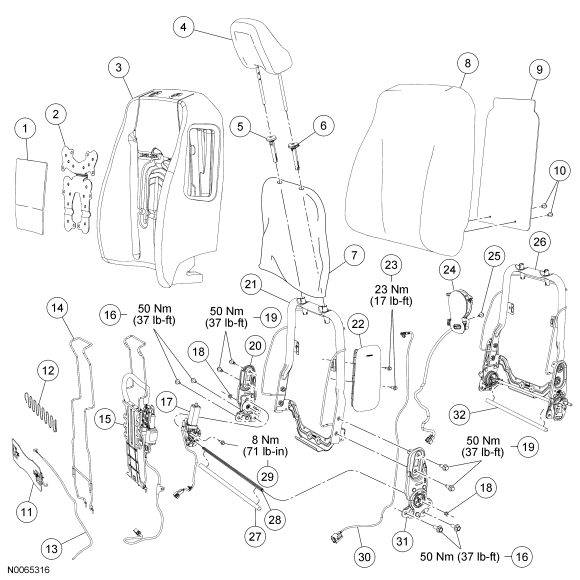

Fig 1: Exploded View Of Front Seat Backrest, Manual and Power Recline, Without Fold Flat With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Backrest heater mat (part of 64811) (if equipped) |
| 2 | 18D507 | Backrest climate control seat manifold (if equipped) |
| 3 | 64811 | Backrest foam pad |
| 4 | 611A08 | Head restraint |
| 5 | 610A16 | Head restraint guide, slave |
| 6 | 610A16 | Head restraint guide, master |
| 7 | - | Anti-squeak bag |
| 8 | 64417 | Backrest trim cover |
| 9 | 60508 | Hard back panel |
| 10 | - | Pin-type retainers |
| 11 | 65500 | Manual lumbar assembly (if equipped) |
| 12 | - | Upper support spring |
| 13 | - | Manual lumbar cable (part of 65500) (if equipped) |
| 14 | 65500 | Static lumbar |
| 15 | 65500 | Power lumbar assembly (if equipped) |
| 16 | W712240 | Power/manual recliner-to-seat track bolts (4 required) |
| 17 | 14547 | Recliner motor (if equipped) |
| 18 | - | Recliner torque shaft clips (2 required) (if equipped) |
| 19 | W712240 | Power recliner-to-backrest frame bolts (4 required) (if equipped) |
| 20 | 62648 | Inboard power recliner (if equipped) |
| 21 | 61019 | Backrest frame (with power recline) (if equipped) |
| 22 | 611D11 | Side air bag module |
| 23 | W506021 | Side air bag module bolts |
| 24 | 18D507 | Backrest thermo-electric device (TED) (if equipped) |
| 25 | W505945 | TED screw (if equipped) |
| 26 | 61018 | Backrest frame (with manual recline) (if equipped) |
| 27 | 625A84 | Power recline torque shaft cover (if equipped) |
| 28 | 61726 | Recliner torque shaft |
| 29 | - | Recliner motor bolt (if equipped) |
| 30 | 14K155 | Side air bag wire harness |
| 31 | 62648 | Outboard power recliner (if equipped) |
| 32 | 625A84 | Manual recline torque shaft cover (if equipped) |
NOTE:
Optional backrest on passenger seat only.
NOTE:
Manual recliners with fold flat backrest are serviced separately.
NOTE:
A new heater mat will come assembled on a new foam pad.

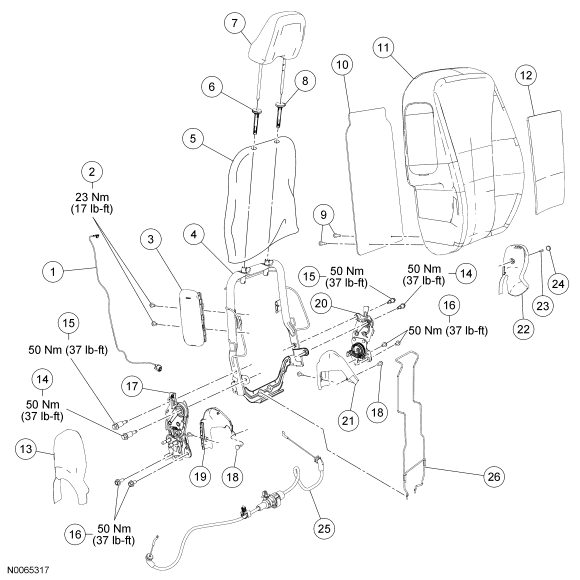

Fig 2: Exploded View Of Front Seat Backrest, Manual Recline With Fold Flat With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | 14K155 | Side air bag wire harness |
| 2 | W506021 | Side air bag module bolts |
| 3 | 611D10 | Side air bag module |
| 4 | - | Fold flat backrest frame |
| 5 | - | Anti-squeak bag |
| 6 | 610A16 | Head restraint guide, slave |
| 7 | 611A08 | Head restraint |
| 8 | 610A16 | Head restraint guide, master |
| 9 | - | Pin-type retainers |
| 10 | 60508 | Hard back panel |
| 11 | 64810/64416 | Backrest foam pad/backrest trim cover |
| 12 | - | Backrest heater mat (part of 64810) (if equipped) |
| 13 | 62186 | RH outer fold flat recliner cover |
| 14 | W712059 | Fold flat recliner-to-fold flat backrest frame front bolts (2 required) |
| 15 | W500720 | Fold flat recliner-to-fold flat backrest frame rear bolts (2 required) |
| 16 | W712240 | Fold flat recliner-to-seat track bolts (4 required) |
| 17 | - | RH fold flat recliner |
| 18 | 62294 | Inboard fold flat recliner cover screw (4 required) |
| 19 | 62186 | RH inboard fold flat recliner cover |
| 20 | - | LH fold flat recliner |
| 21 | 62187 | LH inboard fold flat recliner cover |
| 22 | 62187 | LH outer fold flat recliner cover |
| 23 | 62294 | LH outer fold flat recliner cover screw |
| 24 | - | Screw cover |
| 25 | - | Fold flat recliner cable |
| 26 | 65500 | Static lumbar |

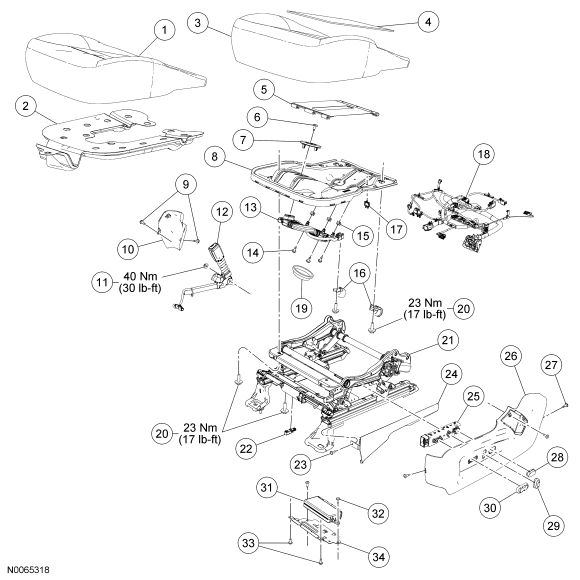

NOTE:
Driver seat shown, passenger seat similar.
NOTE:
A new heater mat will come assembled on a new foam pad.
| Item | Part Number | Description |
|---|---|---|
| 1 | 62901 | Cushion trim cover |
| 2 | 18D507 | Cushion climate control seat manifold (if equipped) |
| 3 | 632A23 | Cushion foam pad |
| 4 | - | Cushion heater mat (part of 632A23) |
| 5 | 63226 | Cushion support |
| 6 | - | Cushion TED-to-climate control seat cushion adapter screw (if equipped) |
| 7 | 18D507 | Cushion thermo-electric device (TED) adapter (if equipped) |
| 8 | 63100 | Cushion frame |
| 9 | 62294 | Recliner side shield screws |
| 10 | 62187 | Recliner side shield |
| 11 | - | Safety belt buckle and pretensioner-to-seat track nut (part of 61203) |
| 12 | 61203 | Safety belt buckle and pretensioner |
| 13 | 18D507 | Cushion TED (if equipped) |
| 14 | W505945 | Cushion TED-to-cushion frame screw (3 required) (if equipped) |
| 15 | - | Screw grommet |
| 16 | - | Cushion frame-to-seat track rear brackets |
| 17 | - | Wire clip |
| 18 | 14A699 | Driver seat wire harness |
| 19 | 19E880 | Cushion TED filter (if equipped) |
| 20 | - | Seat track-to-cushion frame bolts (4 required) |
| 21 | 61711 | Power seat track assembly |
| 22 | 14B416 | Seat position sensor (driver only) |
| 23 | 62294 | Seat track cover retainer |
| 24 | 62187 | Seat track cover |
| 25 | 14A701 | Seat control switch |
| 26 | 62187 | Cushion side shield |
| 27 | 62294 | Cushion side shield retainer (3 required) |
| 28 | 14711 | Power lumbar switch knob (if equipped) |
| 29 | 14711 | Power seat recliner knob |
| 30 | 14711 | Seat control switch knob |
| 31 | 14C708 | Driver seat module (DSM) (if equipped) |
| 32 | 62294 | DSM-to-bracket screw (2 required) (if equipped) |
| 33 | 62294 | Bracket-to-seat track screws (if equipped) |
| 34 | 14A301 | DSM bracket (if equipped) |

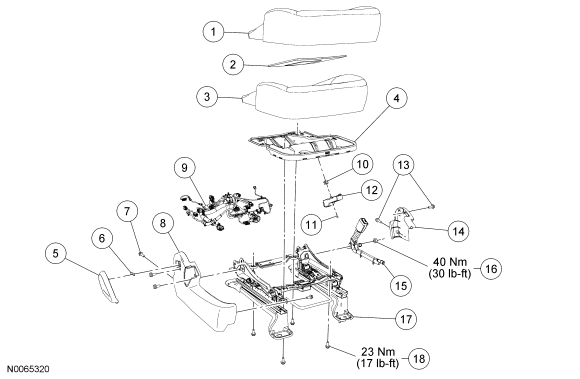

NOTE:
A new heater mat will come assembled on a new foam pad.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Cushion heater mat (part of 632A23) (if equipped) |
| 2 | 62901 | Cushion trim cover |
| 3 | 632A23 | Cushion foam pad |
| 4 | 63100 | Cushion frame |
| 5 | - | Wire clip |
| 6 | 62294 | Recliner side shield screws |
| 7 | - | Recliner side shield |
| 8 | 14A699 | Driver seat wire harness |
| 9 | - | Safety belt buckle and pretensioner-to-seat track bolt (part of 61203) (manual driver seat track only) |
| 10 | 61203 | Safety belt buckle and pretensioner |
| 11 | 61711 | Manual seat track assembly |
| 12 | - | Seat track-to-cushion frame bolts (4 required) |
| 13 | 14B416 | Seat track position sensor |
| 14 | 610C01 | Manual lumbar adjuster (if equipped) |
| 15 | 62294 | Manual lumbar adjuster-to-seat track screw (if equipped) |
| 16 | - | Manual lumbar cable (if equipped) |
| 17 | 62187 | Cushion side shield |
| 18 | 62294 | Cushion side shield retainer (4 required) |
| 19 | - | Manual recliner handle spring clip |
| 20 | 61737 | Manual recliner handle |
| 21 | 61737 | Manual height adjust handle (if equipped) |
| 22 | 617B70 | Manual lumbar adjust handle (if equipped) |

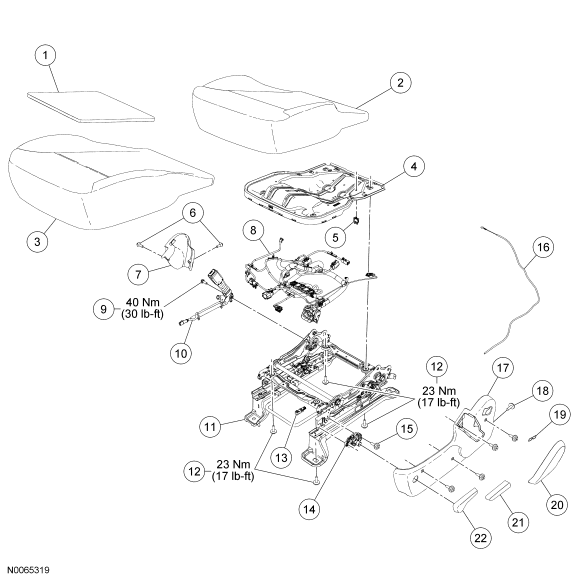

NOTE:
A new heater mat will come assembled on a new foam pad.
| Item | Part Number | Description |
|---|---|---|
| 1 | 62900 | Cushion trim cover |
| 2 | - | Cushion heater mat (part of 632A22) (if equipped) |
| 3 | 632A22 | Cushion foam pad |
| 4 | 63100 | Cushion frame |
| 5 | 61736 | Manual recliner handle |
| 6 | - | Manual recliner handle cover spring clip |
| 7 | 62294 | Cushion side shield screw (4 required) |
| 8 | 62186 | Cushion side shield |
| 9 | 14A698 | Passenger seat wire harness |
| 10 | - | Grommet |
| 11 | - | Screw |
| 12 | 14C724 | Heated seat module (if equipped) |
| 13 | 62294 | Recliner side shield screws |
| 14 | 62187 | Recliner side shield |
| 15 | 61202 | Safety belt buckle and pretensioner |
| 16 | - | Safety belt buckle and pretensioner nut (part of 61202) |
| 17 | 61704 | Manual seat track assembly |
| 18 | - | Seat track-to-cushion frame bolts (4 required) |

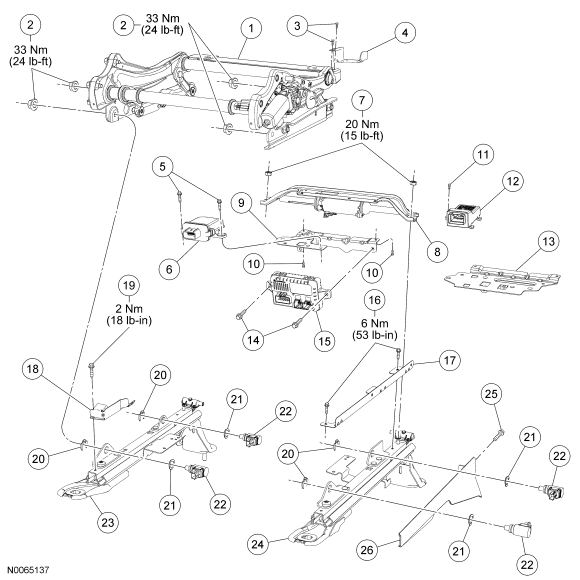

NOTE:
To install a new occupant classification module or an occupant classification sensor (OCS) weight sensor bolt, refer to the appropriate procedure in No Content
.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Power seat track adjuster assembly (part of 61710) |
| 2 | 63100 | Occupant classification sensor (OCS) weight sensor bolt nuts (4 required) |
| 3 | 62294 | Cushion side shield bracket screws |
| 4 | 14A301 | Cushion side shield bracket |
| 5 | 62294 | Occupant classification module retainer |
| 6 | 14B422 | Occupant classification module |
| 7 | - | Seat track front cross brace nuts (part of 61710) |
| 8 | - | Seat track front cross brace (part of 61710) |
| 9 | 14A301 | Bracket (with climate control seat module [CCSM]) (if equipped) |
| 10 | 62294 | Bracket screws |
| 11 | - | Heated seat module screw (if equipped) |
| 12 | 14C724 | Heated seat module (if equipped) |
| 13 | 14A301 | Bracket (with heated seat module) (if equipped) |
| 14 | 62294 | CCSM retainer (if equipped) |
| 15 | 14C724 | CCSM (if equipped) |
| 16 | 62294 | Outboard OCS weight sensor bolt protection bracket screws |
| 17 | - | Outboard OCS weight sensor bolt protection bracket |
| 18 | - | Inboard OCS weight sensor bolt protection bracket |
| 19 | 62294 | Inboard OCS weight sensor bolt protection bracket screw |
| 20 | - | OCS weight sensor bolt retaining clips (4 required) (part of 61710) |
| 21 | - | OCS weight sensor bolt spring washers (4 required) (part of 61710) |
| 22 | 14B422 | OCS weight sensor bolts (4 required) (part of 61710) |
| 23 | - | Inboard seat track rail (part of 61710) |
| 24 | - | Outboard seat track rail (part of 61710) |
| 25 | 62294 | Seat track cover retainer |
| 26 | - | Seat track cover |
- For additional information, refer to the appropriate procedures.
