Occupant Classification Module - Manual Seat Track: Notes

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

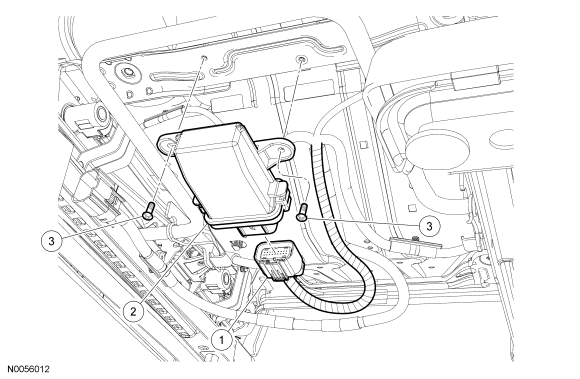

Fig 1: Exploded View Of Occupant Classification Module - Manual Seat Track

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Occupant classification sensor (OCS) module electrical connector (part of 14A698)
2	14B422	OCS module
3	-	OCS module screws (2 required)
