Input Shaft: Notes
WARNING: This page is about a different car, the 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Input Bearing Installer | 308-582 or equivalent | |
| Installer, Spindle/Axle Shaft | 205-199 or equivalent | |
| Puller, Bearing | 205-D064 or equivalent |

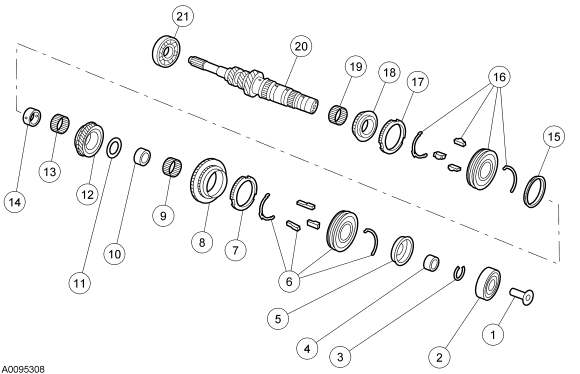

| Item | Part Number | Description |
|---|---|---|
| 1 | 7L276 | Oil channel |
| 2 | 7A453 | Input shaft rear bearing |
| 3 | 4097 | Snap ring |
| 4 | 7N112 | Input shaft spacer |
| 5 | 7L049 | 5th gear stopper |
| 6 | 7L052 | 5th gear synchronizer assembly |
| 7 | 7107 | 5th gear synchronizer ring |
| 8 | 7144 | 5th input gear |
| 9 | 7K275 | 5th gear needle bearing |
| 10 | 7N090 | 5th gear bushing |
| 11 | 7G103 | Thrust washer |
| 12 | 7112 | 4th input gear |
| 13 | 7065 | 4th gear needle bearing |
| 14 | 7N090 | 4th gear bushing |
| 15 | 7107 | 4th gear synchronizer ring |
| 16 | 7K160 | 3rd and 4th gears synchronizer assembly |
| 17 | 7107 | 3rd gear synchronizer ring |
| 18 | 7N315 | 3rd input gear |
| 19 | 7065 | 3rd gear needle bearing |
| 20 | 7017 | Input shaft |
| 21 | 7G429 | Input shaft front bearing |
