Disassembly And Assembly Of Subassemblies: Synchronizers: Notes

WARNING: This page is about a different car, the 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

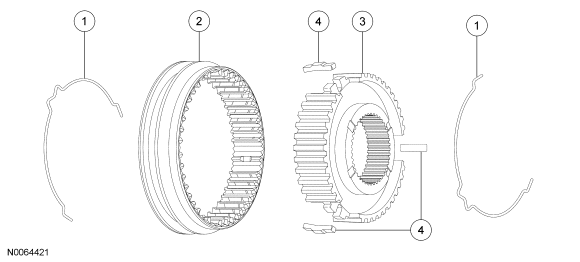

Fig 1: Exploded View Of Synchronizer Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	7109	Synchronizer spring
2	7C115	Synchronizer sleeve (part of assembly)
3	7C115	Synchronizer hubs (part of assembly)
4	7C396	Synchronizer keys (3 required)
