Transaxle Front Support Insulator: Notes
WARNING: This page is about a different car, the 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| 3-Bar Engine Support Kit | 303-F072 or equivalent |

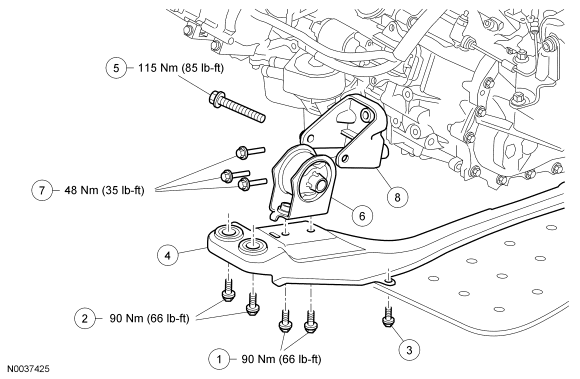

| Item | Part Number | Description |
|---|---|---|
| 1 | W706899-S439 | Transaxle front support insulator bolts (2 required) |
| 2 | W706899-S439 | Transaxle front-to-aft crossmember bolts (2 required) |
| 3 | - | Splash shield screw |
| 4 | 10852 | Transaxle front-to-aft crossmember |
| 5 | W711268-S439 | Transaxle front support insulator through bolt |
| 6 | 6E037 | Transaxle front support insulator |
| 7 | W500321-S439 | Transaxle front support insulator bracket bolts (3 required) |
| 8 | 6A060 | Transaxle front support insulator bracket |
