Removal And Installation: Driveshaft: Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

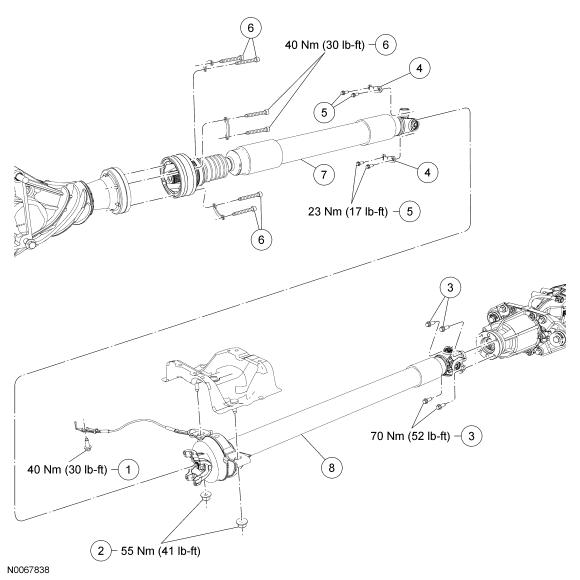

| Item | Part Number | Description |
|---|---|---|
| 1 | W500233-S439 | Ground strap bolt |
| 2 | W70589-S440 | Center bearing support nuts (2 required) |
| 3 | W711960-S439 | Rear driveshaft-to-pinion flange bolts (4 required) |
| 4 | 4639 | U-joint cap straps (2 required) |
| 5 | 3N341 | U-joint cap strap bolts (4 required) |
| 6 | 4B496 | Constant velocity joint-to-power transfer unit (PTU) bolt and washer assembly (3 required) |
| 7 | 4602 | Front driveshaft |
| 8 | 4602 | Rear driveshaft |
