Restraints Control Module (RCM): Notes
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

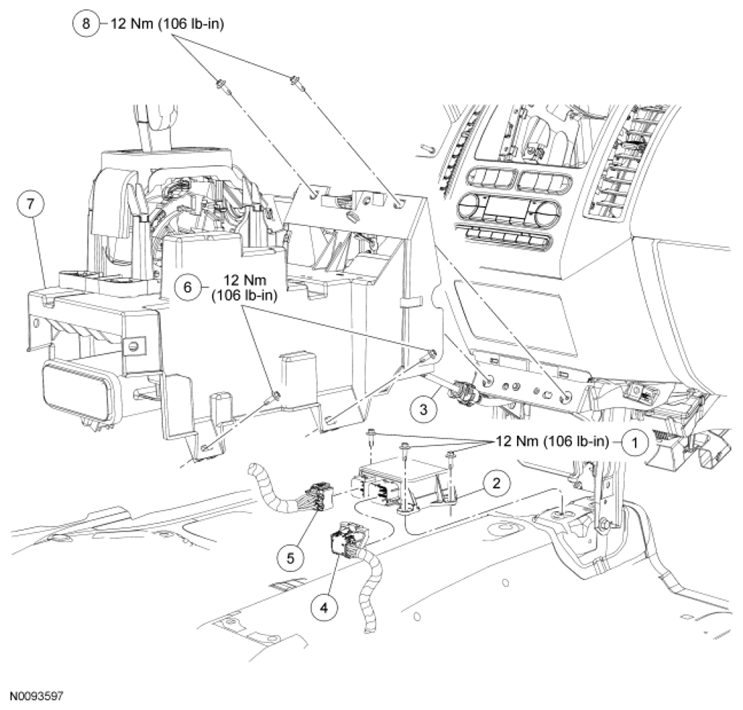

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W707935 | Restraints Control Module (RCM) bolts |
| 2 | 14B321 | RCM |
| 3 | 7E395 | Selector lever cable |
| 4 | - | RCM large connector (part of 14A005) |
| 5 | - | RCM small connector (part of 14401) |
| 6 | W505157 | Inner floor console support bolts (4 required) |
| 7 | 45B34 | Inner floor console support |
| 8 | W707935 | Inner floor console support-to-instrument panel bolts (2 required) |
