Side Air Bag Module: Notes
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

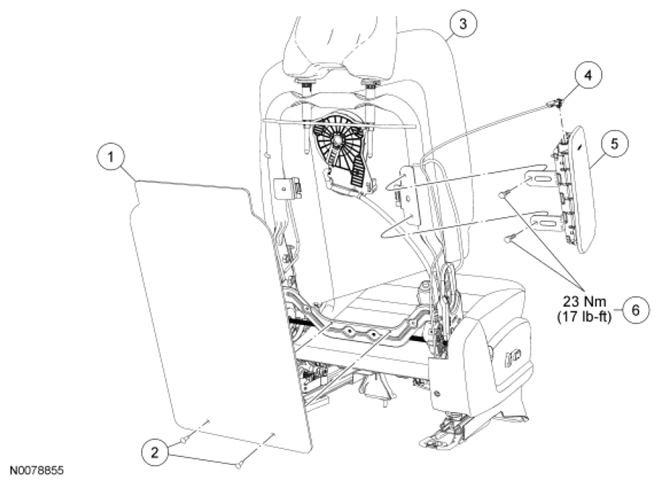

Passenger seat shown in illustration, driver seat similar.
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 60508 | Seat backrest cover rear panel reinforcement board |
| 2 | - | Seat backrest cover rear panel reinforcement board pin-type retainers |
| 3 | 64416/64810 | Seat backrest cover and foam pad |
| 4 | - | Side air bag module electrical connector (part of 14K155) |
| 5 | 611D10 RH/611D11 LH | Side air bag module |
| 6 | W506021 | Side air bag module bolts (2 required) |
