Edge Instrument Panel
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

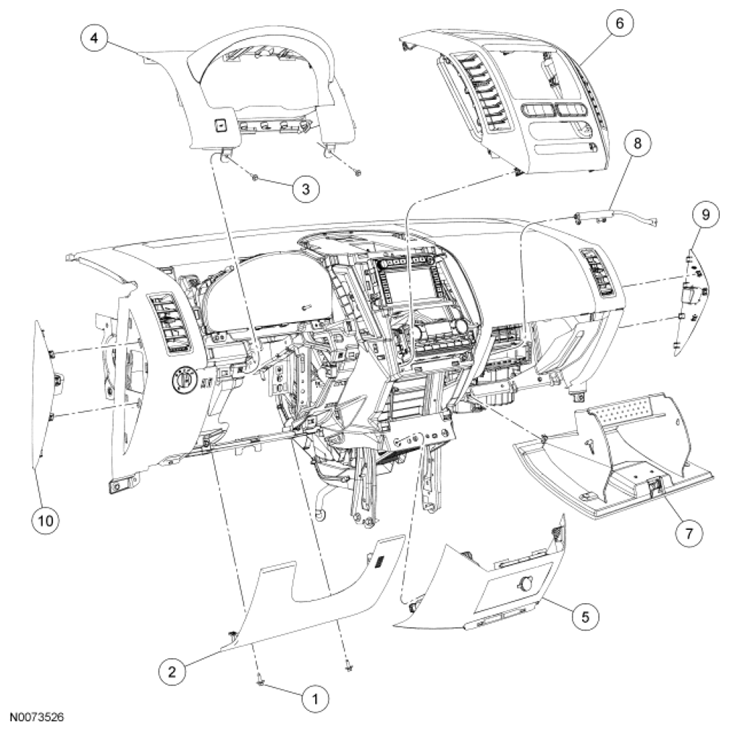

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W505002 | Steering column opening trim panel screw (2 required) |
| 2 | 04459 | Steering column opening trim panel |
| 3 | W707628 | Instrument panel cluster finish panel screw (2 required) |
| 4 | 044D70 | Instrument panel cluster finish panel |
| 5 | 04608 | Instrument panel lower center finish panel |
| 6 | 04302 | Instrument panel upper center finish panel |
| 7 | 06024 | Glove compartment |
| 8 | 061A58 | Glove compartment dampener |
| 9 | 04480 | RH instrument panel side trim panel |
| 10 | 04481 | LH instrument panel side trim panel |

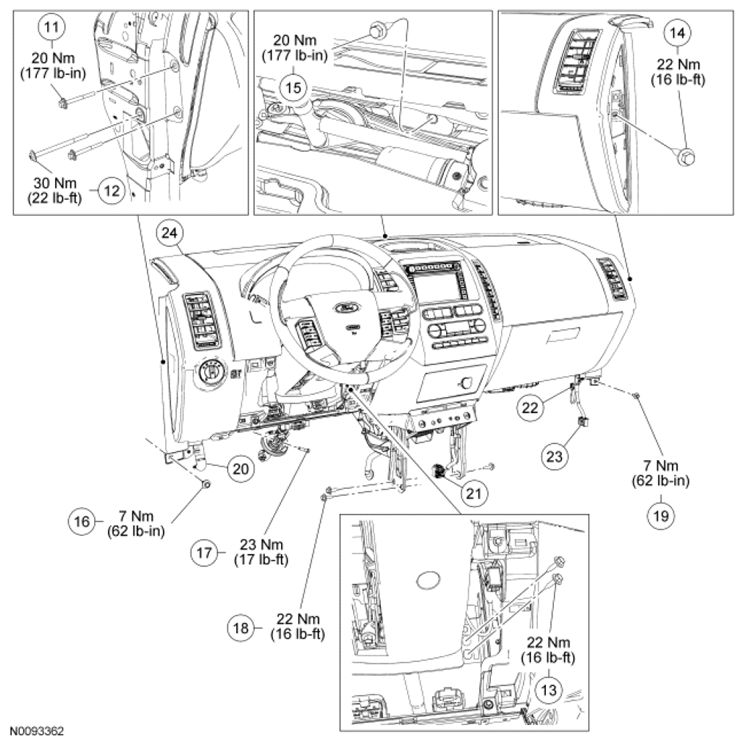

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 11 | W712386 | LH instrument panel bolt (2 required) |
| 12 | W712387 | LH instrument panel Torx head bolt |
| 13 | W711648 | Instrument panel-to-steering column bracket bolt (2 required) |
| 14 | W706246 | RH instrument panel bolt |
| 15 | W710309 | Instrument panel-to-front of dash bolt |
| 16 | W712403 | LH instrument panel-to-body bolt |
| 17 | 3RA27 | Steering column shaft-to-steering column bolt |
| 18 | W706246 | Instrument panel-to-floor bolt (3 required) |
| 19 | W706246 | RH instrument panel-to-body bolt |
| 20 | 14401 | LH instrument panel electrical connectors |
| 21 | 14401 | Restraints Control Module (RCM) electrical connector |
| 22 | - | Antenna lead-in |
| 23 | 14401 | RH instrument panel electrical connector |
| 24 | 04320 | Instrument panel |
