Satellite Digital Audio Receiver System (SDARS) Module: Notes

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

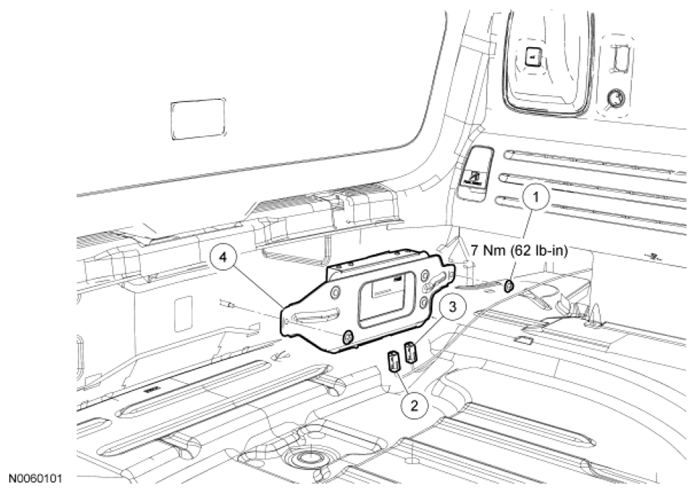

Fig 1: SDARS Module With Nuts And Electrical Connectors With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	W707293-S	Satellite Digital Audio Receiver System (SDARS) module nuts (2 required)
2	19A397	Satellite radio antenna connector
3	-	SDARS module electrical connector (part of 14A005)
4	18C960	SDARS module
