Block Heater: Notes

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

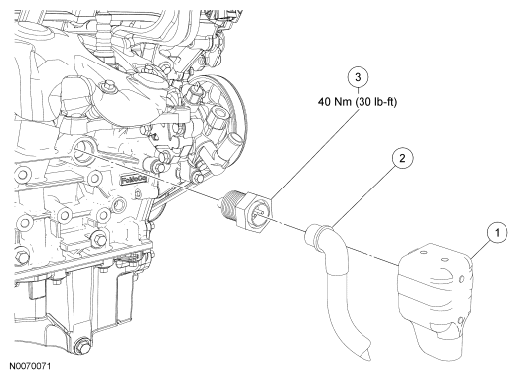

Fig 1: Exploded View Of Block Heater With Torque Specifications

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	030104	Block heater cover
2	6B018	Block heater electrical connector
3	6A051	Block heater
