Removal And Installation: Radiator: Notes

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

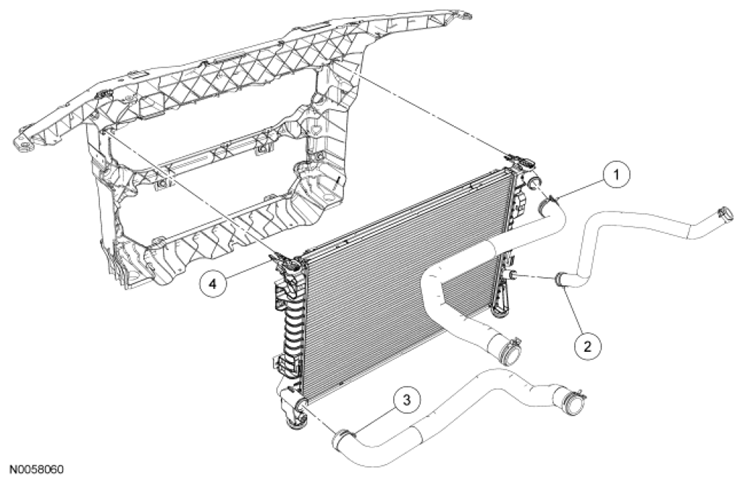

Fig 1: Exploded View Of Radiator
G06502178Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 8B274 Upper radiator hose
2 8C633 Lower degas bottle hose
3 8B273 Lower radiator hose
4 8A194 Upper radiator support bracket (2 required)

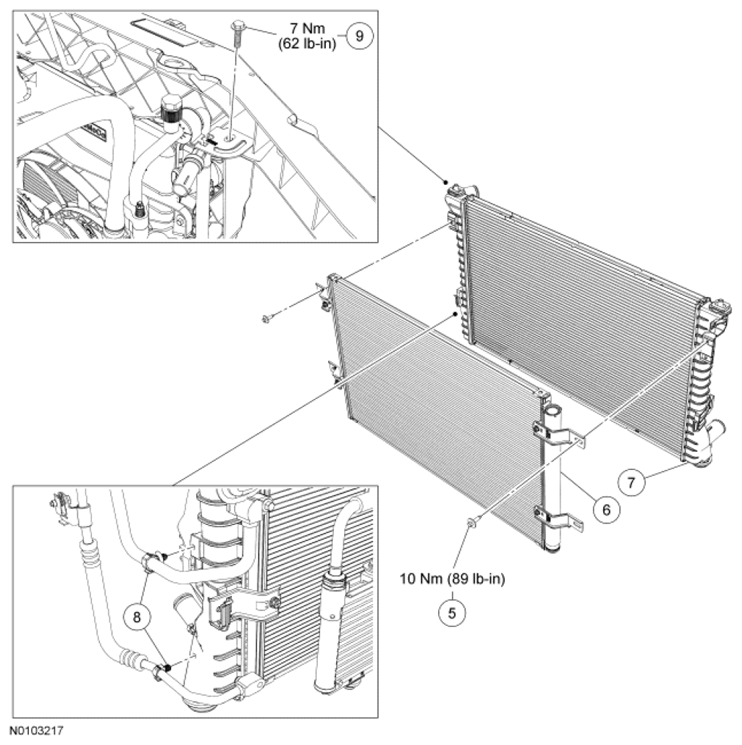

Fig 2: Exploded View Of A/C Condenser With Torque Specifications
G06502179Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
5 - A/C condenser bolt (2 required)
6 19710 A/C condenser
7 8005 Radiator
8 19D738 Pin-type retainers (2 required)
9 W707400 Compressor-to-condenser discharge line bracket bolt
