Ambient Lighting Module: Notes
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

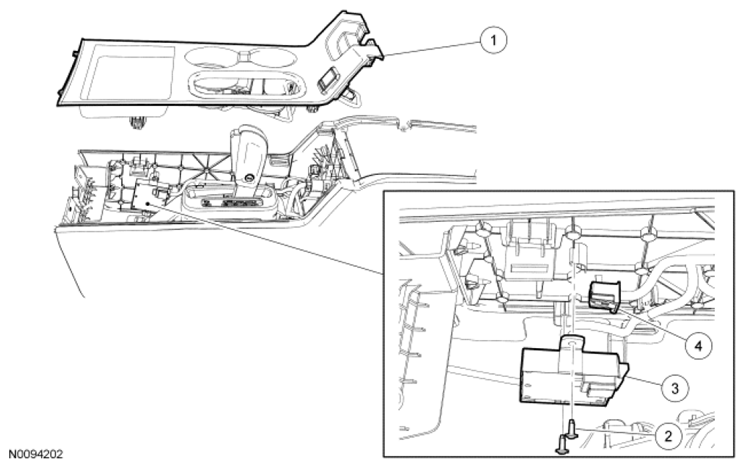

Edge shown in illustration, MKX similar.
Courtesy of FORD MOTOR CO. ITEM DESCRIPTION
| Item |
Part Number |
Description |
| 1 |
78045A76 |
Floor console finish panel |
| 2 |
- |
Ambient lighting module screws (2 required) |
| 3 |
13C788 |
Ambient lighting module |
| 4 |
- |
Ambient lighting module electrical connector (part of 14D662) |
