Parking Aid Module (PAM): Notes

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

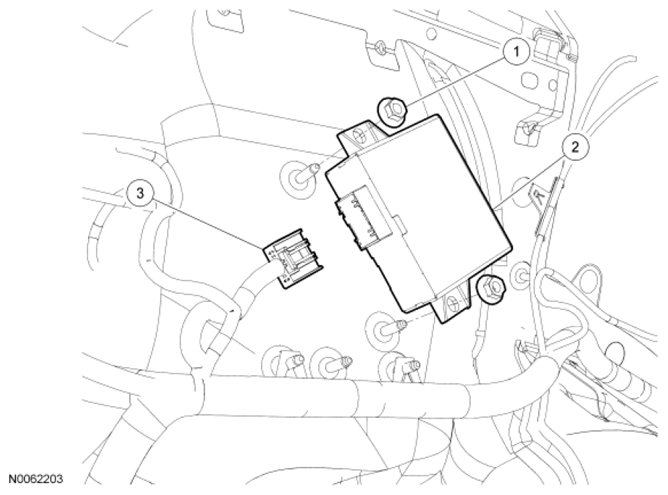

Fig 1: Identifying Parking Aid Module (PAM) Components

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	W707142	Parking Aid Module (PAM) nuts (2 required)
2	15K866	PAM
3	-	PAM electrical connector (part of 14A005)
