Front Display Interface Module Connector - C2123

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

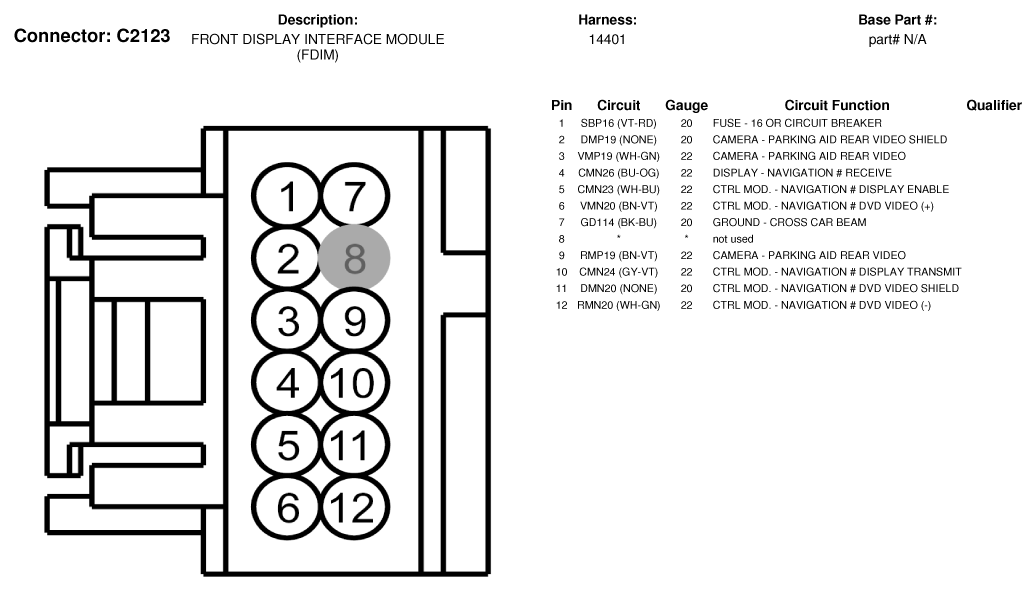

Fig 1: Front Display Interface Module Connector End View (C2123)
G07336246Courtesy of FORD MOTOR CO.
