Highbeam Control Module 2 Connector - C9115

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

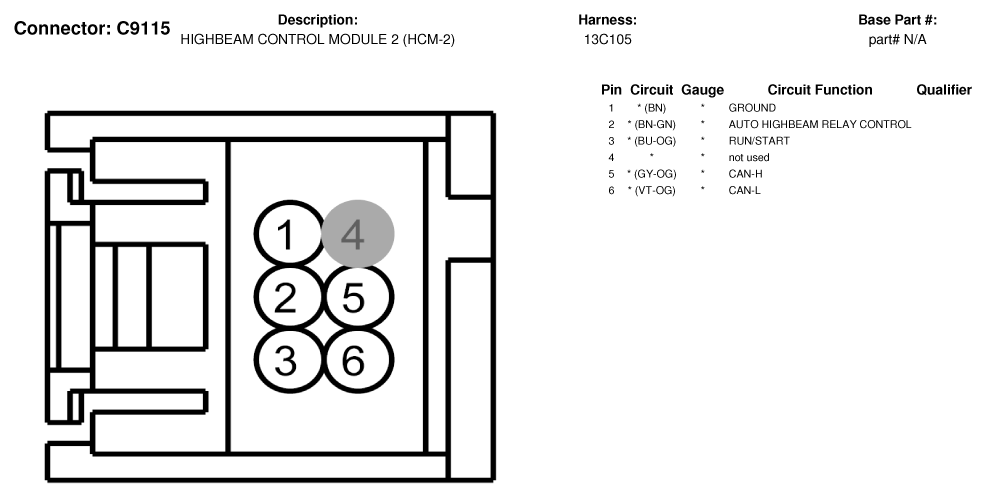

Fig 1: Highbeam Control Module 2 Connector End View (C9115)
G07336447Courtesy of FORD MOTOR CO.
