Remote Functions Receiver Module Connector - C9026
WARNING:
This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

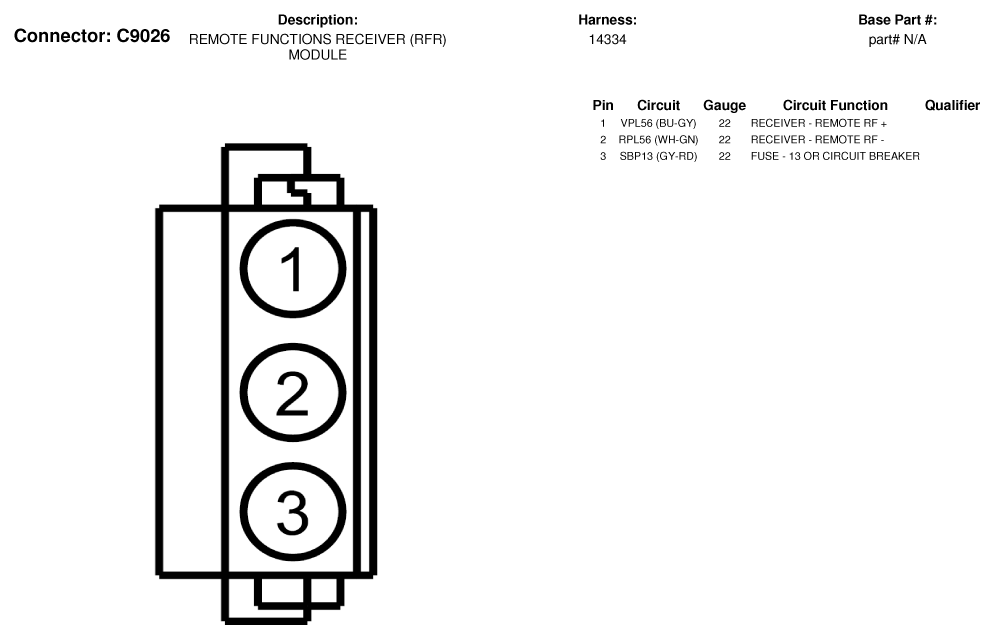

Fig 1: Remote Functions Receiver Module Connector End View (C9026)
Courtesy of FORD MOTOR CO.
