Restraints Control Module Connectors - C310A

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

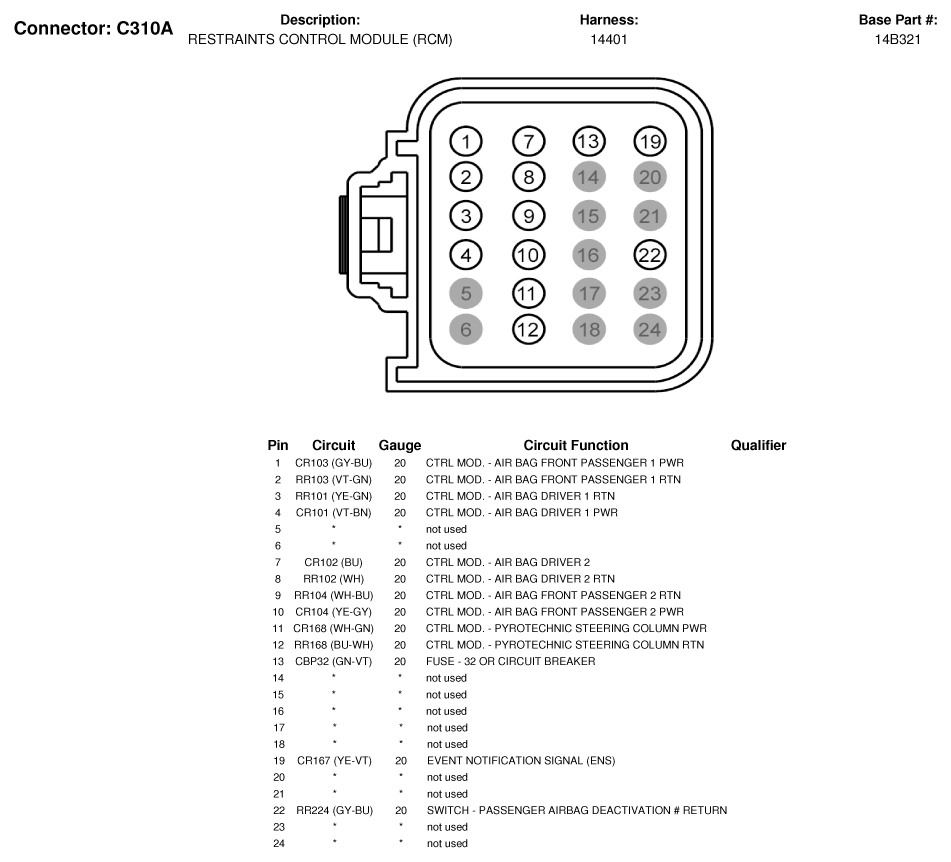

Fig 1: Restraints Control Module Connector End View (C310A)
G07336069Courtesy of FORD MOTOR CO.
