Trailer Brake Control Module Connector - C2142

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

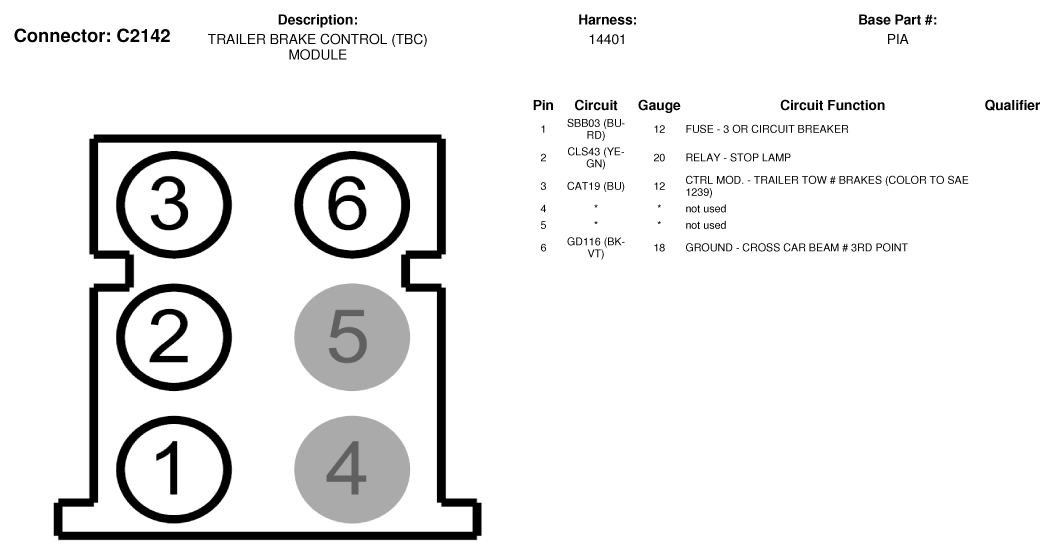

Fig 1: Trailer Brake Control Module Connector End View (C2142)
G07336247Courtesy of FORD MOTOR CO.
