Body Control Module B (BCM-B): Notes
WARNING: This page is about a different car, the 2012 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

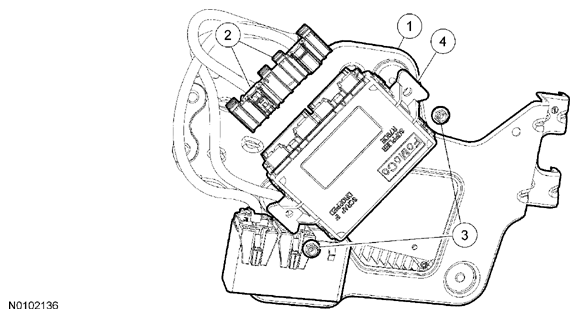

Vehicle with navigation shown in illustration, vehicle without navigation similar.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
14D644 |
Body Control Module B (BCM-B) bracket assembly |
| 2 |
- |
BCM-B electrical connectors (part of 14A005) |
| 3 |
W707142 |
BCM-B nuts (2 required) |
| 4 |
18T805 |
BCM-B |
