Crankshaft Position (CKP) Sensor
WARNING: This page is about a different car, the 2012 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
After installing the Crankshaft Position (CKP) sensor, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.

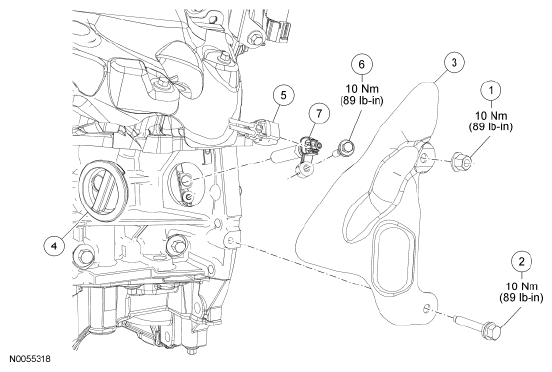

| Item | Part Number | Description |
|---|---|---|
| 1 | W520101 | Heat shield nut |
| 2 | W701669 | Heat shield bolt |
| 3 | 6K342 | Heat shield |
| 4 | 6C070 | Rubber grommet cover |
| 5 | - | Crankshaft Position (CKP) sensor electrical connector (part of 12A581) |
| 6 | W712315 | CKP sensor bolt (part of 6C315) |
| 7 | 6C315 | CKP sensor |
