Knock Sensor (KS)

WARNING: This page is about a different car, the 2012 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The lower intake manifold must be removed to access the KS. For additional information, refer to ENGINE MECHANICAL - 3.7L .

NOTE: LH cylinder head removed in graphic for clarity.

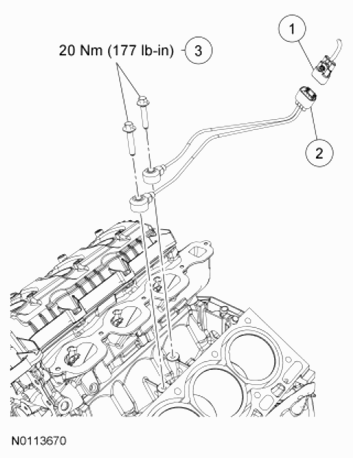

Fig 1: Lnock Sensor, Bolt And Electrical Connector With Torque Specifications (3.7L)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Knock Sensor (KS) electrical connector (part of 12A581)
2	12A699	KS
3	W704749	KS bolt (2 required)
