Knock Sensor (KS)
WARNING: This page is about a different car, the 2012 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The intake manifold must be removed to access the KS. For additional information, refer to
ENGINE MECHANICAL - 5.0L (4V)
.

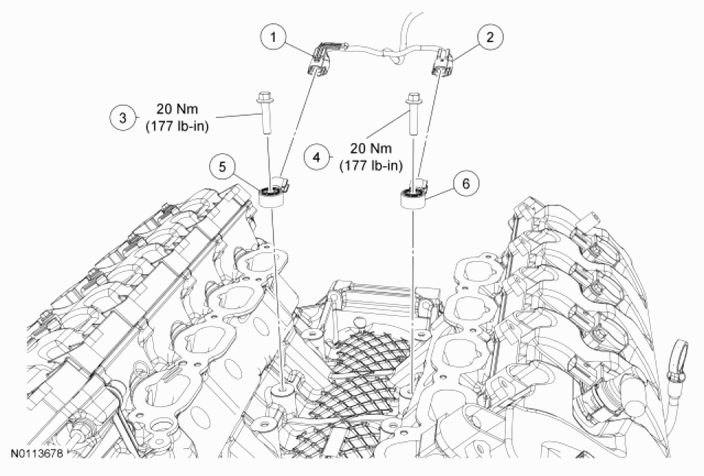

| Item | Part Number | Description |
|---|---|---|
| 1 | - | RH Knock Sensor (KS) electrical connector (part of 14B485) |
| 2 | - | LH KS electrical connector (part of 14B485) |
| 3 | W500110 | RH KS bolt |
| 4 | W500110 | LH KS bolt |
| 5 | 12A699 | RH KS |
| 6 | 12A699 | LH KS |
