Intake Air Temperature 2 (IAT2) Sensor
WARNING: This page is about a different car, the 2012 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Tighten the Intake Air Temperature 2 (IAT2) sensor in 2 stages. During stage 2, do not tighten the IAT2 sensor more than one full turn and do not rotate the IAT2 sensor counterclockwise after tightening.
- Stage 1: Tighten the IAT2 sensor to 15 Nm (133 lb-in).
- Stage 2: Tighten the IAT2 sensor until it is aligned as shown in illustration.

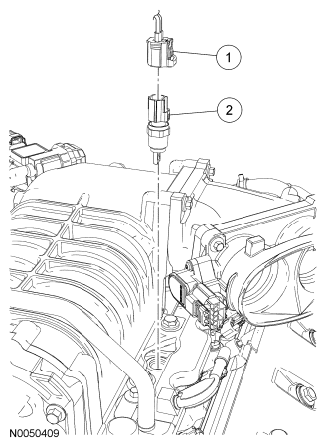

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Intake Air Temperature 2 (IAT2) sensor electrical connector |
| 2 | 12A697 | IAT2 sensor |
