Knock Sensor (KS)

WARNING: This page is about a different car, the 2012 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Note the position and orientation of each Knock Sensor (KS). The sensors must be installed in the same position as removed or damage to the sensors may occur.

NOTE: The intake manifold must be removed to perform this procedure. For additional information, refer to ENGINE MECHANICAL - 5.4L (4V) .

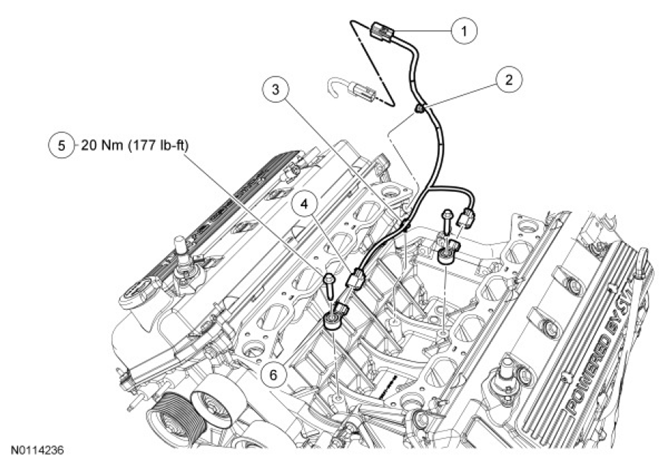

Fig 1: Lnock Sensor Related Replacement Components With Torque Specifications (5.4L - 4V)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Knock Sensor (KS) harness electrical connector (part of 14B485)
2	-	Pin-type retainer (part of 14B485)
3	-	Pin-type retainer (part of 14B485)
4	-	KS electrical connector (part of 14B485) (2 required)
5	W500225	KS bolt (2 required)
6	12A699	KS (2 required)

Refer to the appropriate procedures and/or exploded views in this service information for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
