Audio Input Jack: Notes
WARNING: This page is about a different car, the 2012 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

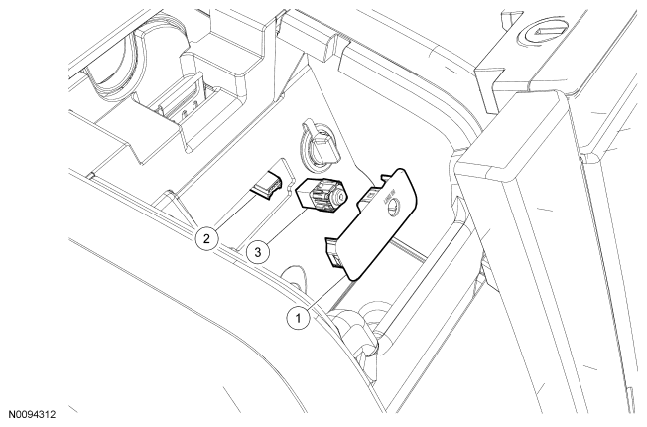

Without the SYNC system shown in illustration, with the SYNC system similar.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
1238 |
Audio input jack bezel |
| 2 |
- |
Audio input jack electrical connector (part of 14401) |
| 3 |
19A164 |
Audio input jack |
