Removal and Installation

WARNING: This page is about a different car, the 2012 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The floor console upper trim panel does not need to be removed.
    NOTE: For vehicles equipped with an automatic transmission, the selector lever bezel must be removed by prying upward on the bezel with a non-marring tool.

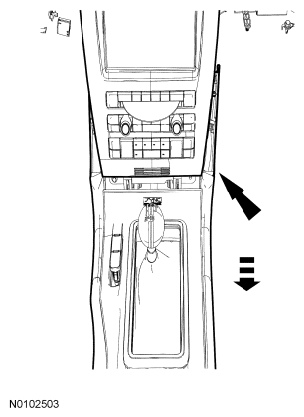

    Fig 1: Prying Floor Console Upper Trim Panel
    G06403684Courtesy of FORD MOTOR CO.
  1. Pry the floor console upper trim panel upward, then backward to disengage the clips.
  2. Remove the 2 screws from the bottom of the center Instrument Panel Cluster (IPC) finish panel.
  3. Pry center of the instrument finish panel out.

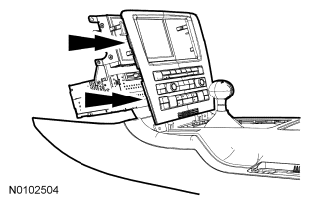

    Fig 2: Locating Instrument Finish Panel
    G06403685Courtesy of FORD MOTOR CO.
  4. Disconnect the Front Controls Interface Module (FCIM) electrical connector.
  5. Remove the 15 screws (with navigation) or 11 screws (without navigation) and the FCIM.
  6. To install, reverse the removal procedure.
