Front Display Interface Module (FDIM): Notes
WARNING: This page is about a different car, the 2012 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

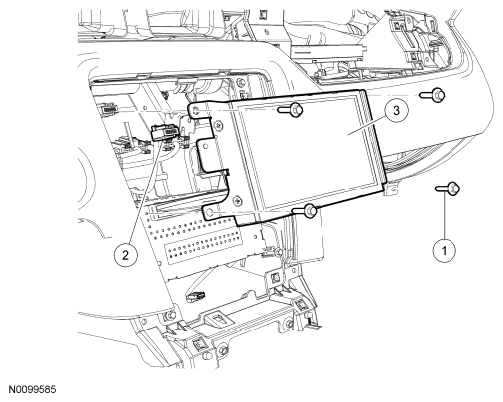

With navigation shown in illustration, without navigation similar.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W705314-S |
Front Display Interface Module (FDIM) screws (4 required) |
| 2 |
- |
FDIM electrical connectors (Part of 14401) |
| 3 |
10D885/10E899 |
FDIM (without navigation/with navigation) |
