Global Positioning System Module (GPSM): Notes
WARNING: This page is about a different car, the 2012 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

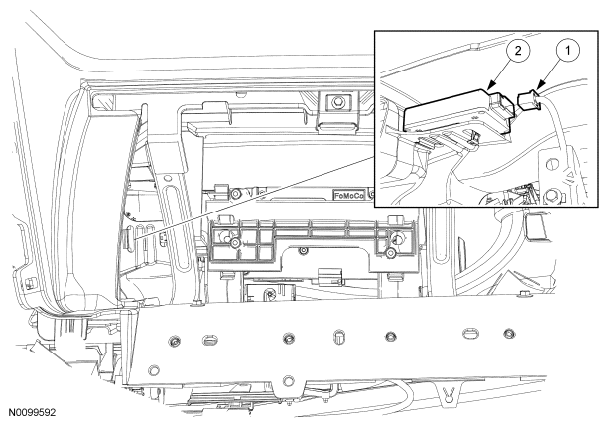

The view is shown in illustration from under the instrument panel.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
- |
Global Positioning System Module (GPSM) electrical connector (part of 14401) |
| 2 |
10E893 |
GPSM |
