Body Control Module (BCM): Notes
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

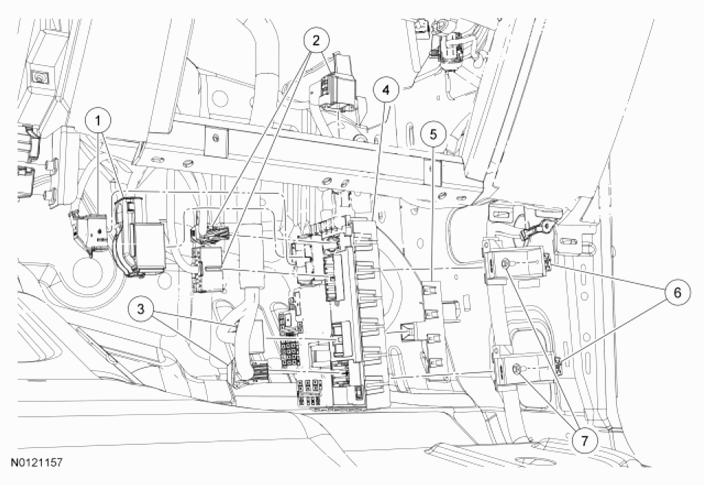

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Body Control Module (BCM) electrical connectors (2 required) (part of 14A005) |
| 2 | - | BCM electrical connectors (3 required) (part of 12A581) |
| 3 | - | BCM electrical connectors (2 required) (part of 14401) |
| 4 | 15604 | BCM |
| 5 | - | BCM front bracket |
| 6 | - | BCM bracket (2 required) |
| 7 | - | BCM bolt (2 required) |
