Cooling Module Assembly: Notes

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

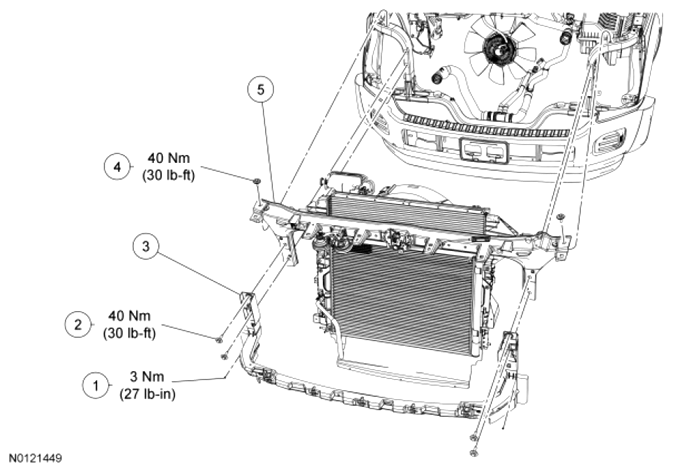

Fig 1: Cooling Module Assembly And Related Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W714994	Lower grille bracket bolt (2 required)
2	W701835	Upper grille bracket bolt (4 required)
3	17A792	Grille bracket
4	W712360	Radiator bolster bolt (2 required)
5	-	Cooling module assembly
