Camshaft Position (CMP) Sensor
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The coolant fan assembly must be removed to perform this procedure. For additional information, refer to
ENGINE COOLING - DIESEL ENGINES
.
NOTE:
Lubricate the Camshaft Position (CMP) sensor O-ring seal with clean engine oil prior to installation.

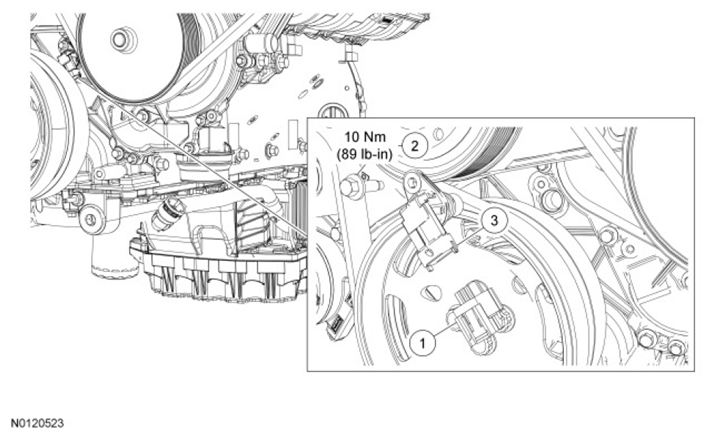

| Item | Part Number | Description |
|---|---|---|
| 1 | - | CMP sensor electrical connector (part of 12B637) |
| 2 | W500214 | Camshaft Position (CMP) sensor bolt |
| 3 | 12K073 | CMP sensor |
