Crankshaft Position (CKP) Sensor
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Do not use magnetic screwdrivers or other magnetic tools around the Crankshaft Position (CKP) sensor and the crankshaft sensor pulse ring or damage to the components may occur.
NOTE:
The red locking tab on the Crankshaft Position (CKP) sensor electrical connector must be released prior to disconnecting the CKP sensor. Engage the red locking tab after connecting the CKP sensor electrical connector.

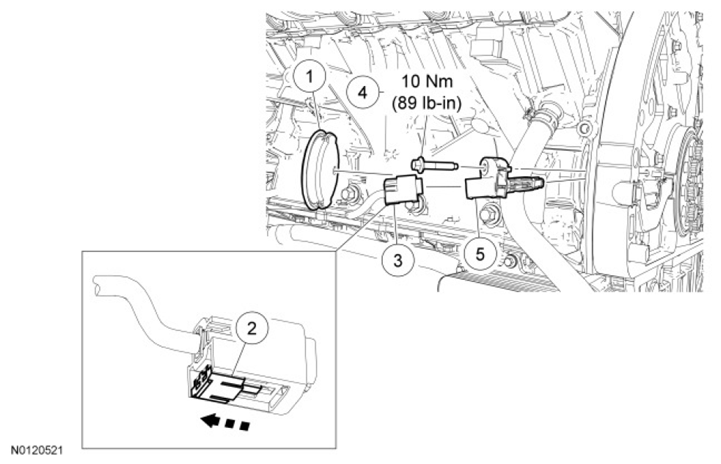

| Item | Part Number | Description |
|---|---|---|
| 1 | 6C070 | Cylinder block opening cover |
| 2 | - | Red locking tab (shown in released position) |
| 3 | - | Crankshaft Position (CKP) sensor electrical connector (part of 12B637) |
| 4 | W500300 | CKP sensor bolt |
| 5 | 6C315 | CKP sensor |
