Fuel Volume Control Valve, Fuel Temperature Sensor and Fuel Pressure Switch
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The upper and lower intake manifolds must be removed to access the fuel volume control valve. For additional information, refer to
ENGINE - 6.7L DIESEL
.
NOTE:
Clean the sealing surface of the fuel temperature sensor fitting prior to installation of the fuel temperature sensor.
NOTE:
Lubricate the O-ring seal(s) with clean engine oil prior to installation.
NOTE:
Tighten the fuel volume control valve bolts alternately in 2 stages:
- Stage 1: Tighten to 3 Nm (27 lb-in)
- Stage 2: Tighten to 7 Nm (62 lb-in)

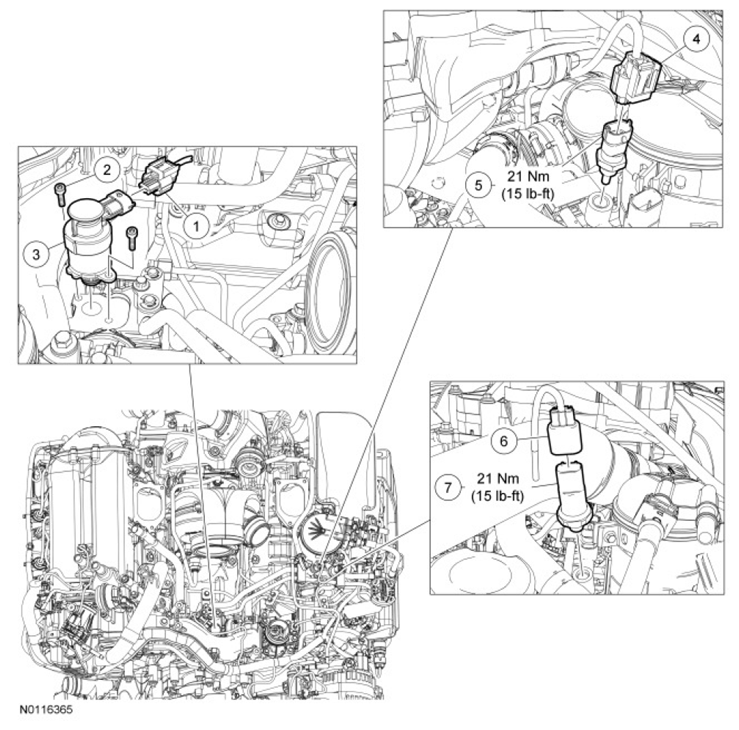

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Fuel volume control valve electrical connector (part of 12B637) |
| 2 | - | Fuel volume control valve bolt (2 required) |
| 3 | 9J307 | Fuel volume control valve |
| 4 | - | Fuel temperature sensor electrical connector (part of 12B637) |
| 5 | 9F951 | Fuel temperature sensor |
| 6 | - | Fuel pressure switch electrical connector (part of 12B637) |
| 7 | 9S599 | Fuel pressure switch |
