Powertrain Control Module (PCM): Notes

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

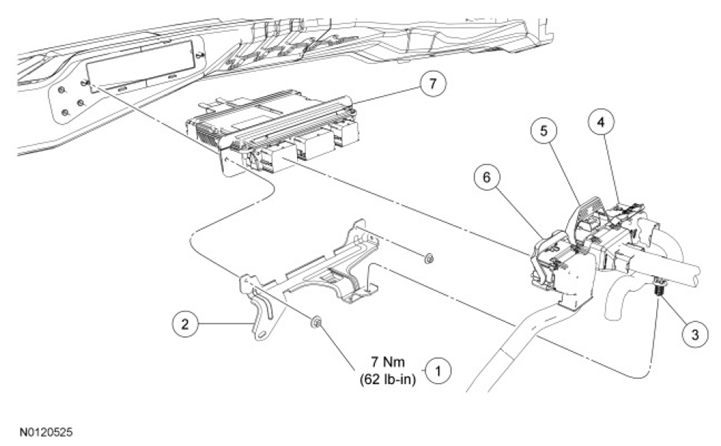

Fig 1: Exploded View Of Powertrain Control Module (PCM) With Torque Specifications
G07482121Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W806769 PCM nuts (2 required)
2 14A206 PCM bracket
3 - Wiring harness retainer (part of 12B637)
4 - PCM electrical connector (part of 14406)
5 - PCM electrical connector (part of 12B637)
6 - PCM electrical connector (part of 12A581)
7 12A650 PCM
