Restraints Control Module (RCM): Installation

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Always tighten the fasteners of the restraints control module (RCM) and impact sensor (if equipped) to the specified torque. Failure to do so may result in incorrect restraint system operation, which increases the risk of personal injury or death in a crash.
  1. Position the RCM  and install the bolts.
    • Tighten to 12 Nm (106 lb-in).
  2. Make sure the connector position assurance lever is in the full RELEASE position before attempting to connect the connector.
    Fig 1: Identifying Connector Position Assurance Lever Full Release Position
    G06063829Courtesy of FORD MOTOR CO.
  3. NOTE: Putting the large Restraints Control Module (RCM) electrical connector into the RCM  on an angle can cause incorrect electrical connections and damage components.

    Position the large RCM  electrical connector into the RCM  .

    • NOTE: Do not push the connector on to where the lever pivots and seats itself. Light pressure is needed to get the connector into position on the Restraints Control Module (RCM) before using the lever to fully seat the connector. Failure to follow this instruction may result in component damage and/or system failure.

      With the large RCM  electrical connector uniformly aligned to the RCM  , lightly push in until a click is heard and a slight resistance is felt.

      Fig 2: Locating Large RCM Electrical Connector
      G06063830Courtesy of FORD MOTOR CO.
  4. Connect the large RCM  electrical connector.
    • Using the connector position assurance lever, pivot it toward the RCM  , drawing the connector into the RCM  .
      • Make sure the thumb tab is engaged to the retainer on the RCM  and locked in place.

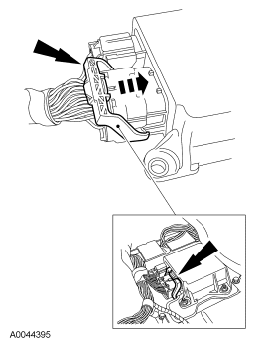

        Fig 3: Connecting Large RCM Electrical Connector
        G06174148Courtesy of FORD MOTOR CO.
  5. Connect the small RCM  electrical connector and push the lock tab in.
    Fig 4: Pushing Lock Tab
    G06100218Courtesy of FORD MOTOR CO.
  6. If equipped, install the floor console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
  7. If equipped, install the front center seat cushion and cupholder assembly. For additional information, refer to SEATING .
  8. Repower the SRS  . For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
  9. If a new RCM  was installed, carry out the appropriate steps to complete the Programmable Module Installation (PMI) procedure. For additional information, refer to MODULE CONFIGURATION .
