Restraints Control Module (RCM): Notes
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

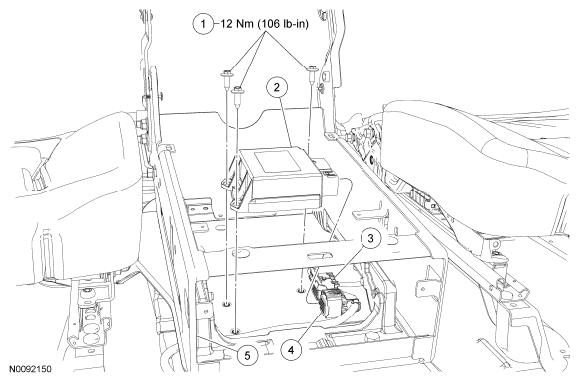

| Item | Part Number | Description |
|---|---|---|
| 1 | W707722 | Restraints Control Module (RCM) bolts |
| 2 | 14B321 | RCM |
| 3 | - | RCM large electrical connector (part of 14A005) |
| 4 | - | RCM small electrical connector (part of 14401) |
| 5 | 61708 | Front center seat base frame |
WARNING:
If a vehicle has been in a crash, inspect the restraints control module (RCM) and the impact sensor (if equipped) mounting areas for deformation. If damaged, restore the mounting areas to the original production configuration. A new RCM and sensors must be installed whether or not the airbags have deployed. Failure to follow these instructions may result in serious personal injury or death in a crash.
WARNING:
Do not handle, move or change the original horizontal mounting position of the restraints control module (RCM) while the RCM is connected and the ignition switch is ON. Failure to follow this instruction may result in the accidental deployment of the Safety Canopy and cause serious personal injury or death.
NOTE:
The air bag warning indicator illuminates when the correct Restraints Control Module (RCM) fuse is removed and the ignition is ON.
NOTE:
The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.
NOTE:
This vehicle is equipped with the SYNC® feature which contains the 911 assist option. Refer to the Owners' Literature.
- When installing a new RCM , carry out the appropriate steps necessary for the Programmable Module Installation (PMI) procedure. For additional information, refer to MODULE CONFIGURATION .
- Depower the SRS . For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
- If equipped, remove the floor console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
- If equipped, remove the front center seat cushion and cupholder assembly. For additional information, refer to SEATING .

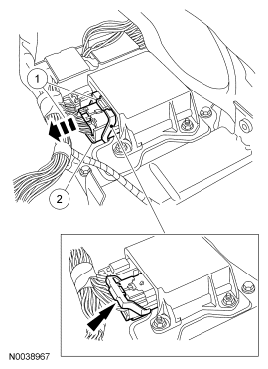

- Disconnect the RCM
large electrical connector.
- Pinch the thumb tab and pivot the connector position assurance lever all the way back until it stops.
- Disconnect the RCM electrical connector.
- Disengage the lock tab, press and disconnect the RCM small electrical connector.
- Remove the 3 RCM bolts.
- Remove the RCM .
