Safety Canopy Module: Notes
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
NOTE:
Super Cab shown, other cab styles similar.
NOTE:
The Safety Canopy® module bolts must be tightened in the sequence described in this procedure.

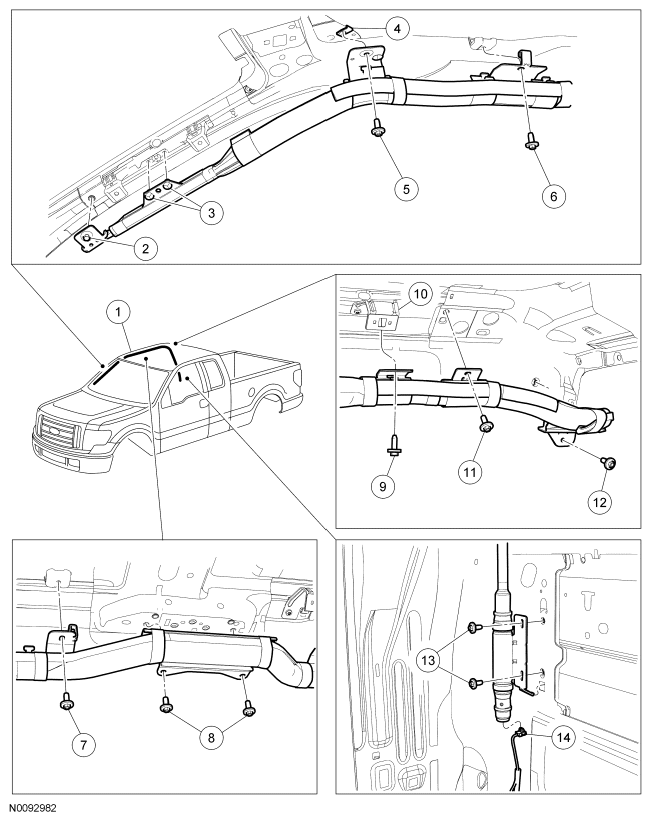

| Item | Part Number | Description |
|---|---|---|
| 1 | 042D94 RH/042D95 LH | Safety Canopy® module |
| 2 | - | A-pillar tether bolt (part of 04D94 RH/042D95 LH) |
| 3 | - | Pin-type retainers (part of 04D94 RH/042D95 LH) |
| 4 | - | J-nut |
| 5 | W713976 | Bolt |
| 6 | W713976 | Bolt |
| 7 | W713976 | Bolt |
| 8 | W713976 | Center locator bolts |
| 9 | W713976 | Bolt |
| 10 | 29019 | Roof opening panel bracket (if equipped) |
| 11 | W713976 | Bolt |
| 12 | W713976 | Bolt |
| 13 | W713976 | Safety Canopy® module canister bolts |
| 14 | - | Electrical connector (part of 14A005) |
