Blower Motor: Notes
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

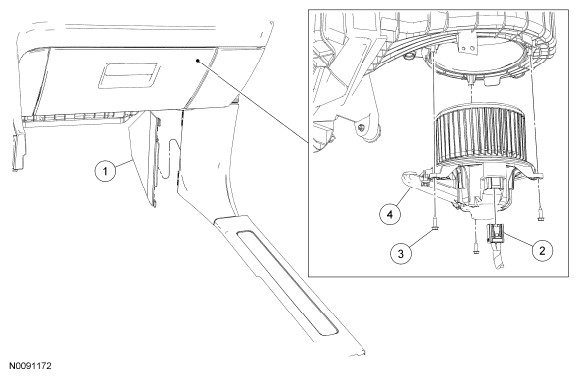

| Item | Part Number | Description |
|---|---|---|
| 1 | 02348 | Junction box cover |
| 2 | - | Blower motor electrical connector (part of 18B574) |
| 3 | W701696 | Blower motor screw (3 required) |
| 4 | 19805 | Blower motor and wheel assembly |
