Audio Digital Signal Processing (DSP) Module - Split Bench: Notes
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
NOTE:
The seats are shown removed for clarity only.

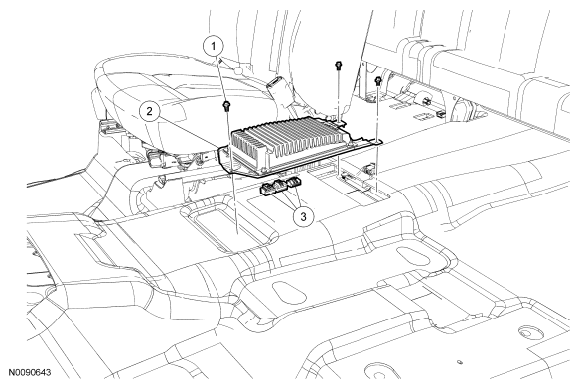

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Audio Digital Signal Processing (DSP) module bolts (3 required) |
| 2 | 18B849 | Audio DSP module |
| 3 | - | Audio DSP module electrical connectors (part of 14A005) |
