Removal and Installation

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Remove the LH center instrument panel finish panel. Refer to INSTRUMENT PANEL AND CONSOLE .
Remove the RH center instrument panel finish panel. Refer to INSTRUMENT PANEL AND CONSOLE .

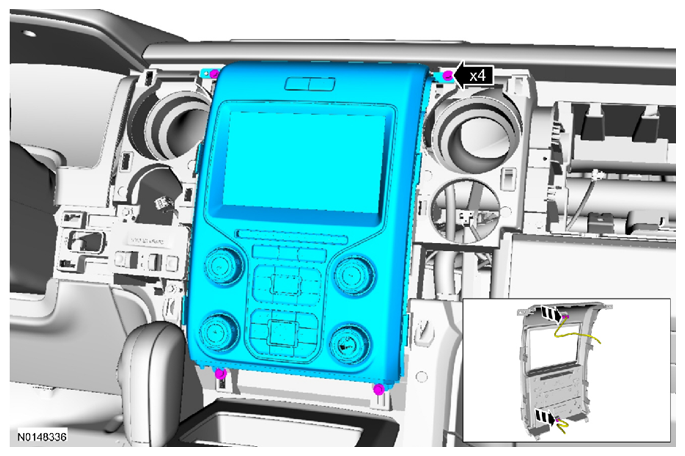

Remove the 4 screws and the FCIM .
- Disconnect the electrical connectors.
- To install, tighten to 3 Nm (27 lb-in).
To install, reverse the removal procedure.
